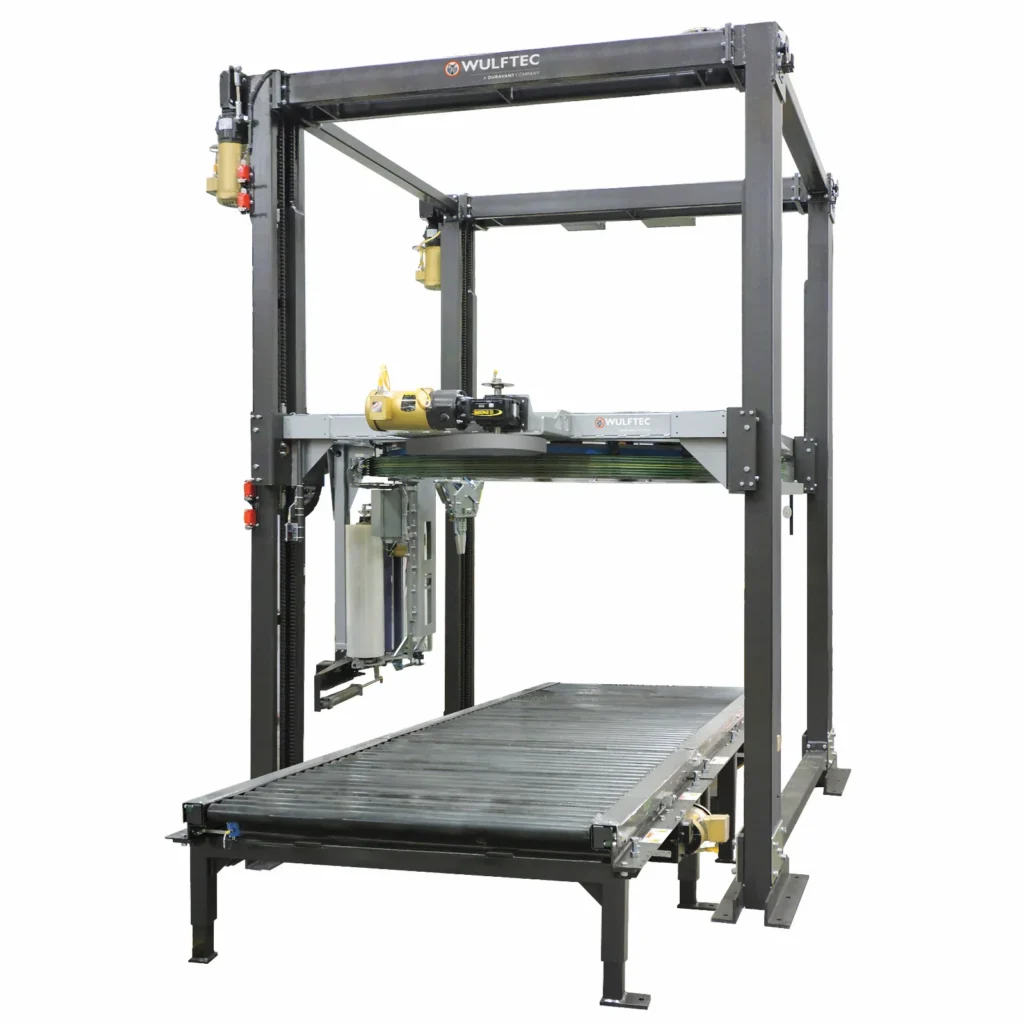

Wring250 Fully automated ring wrapper
Need uncompromising performance and exceptional throughput in a small footprint? The Wring250 is the right choice, the pallet powerhouse delivering product security and productivity savings with every turn of the rotary arm.
Wulftec’s uncompromising design and construction standards are obvious when looking at the Wring250. Ease and efficiency at the heart of this equipment, with up to 75 loads an hour able to be quickly and confidently secured using the cutting-edge conveyorised wrapper.
The powered ring carries the film around the pallet while it sits still on the conveyor, so even light, unstable or double-stacked loads automatically come out securely wrapped. The powered carriage effectively pre-stretches every roll further then cuts the film before sending it on, wrapping more pallets per wrap roll and trimming film and labour costs as it does.
Film changes are just as easy. Wulftec’s exclusive NO-THREAD® pre-stretch carriage tilts out so a new roll drops straight in. There’s no fiddly film threading, and a Lexan safety cover keeps hands well away from the rollers once the gate is closed.
Wring250 owners have peace of mind in packaging performance year after year too.
Made in Canada from 100% structural steel and run by an Allen Bradley control system, this pallet wrapper is also backed by a three-year unlimited-cycle warranty, ten years on the frame, and a lifetime warranty on the pre-stretch rollers. Parts are non-proprietary and easy to source, with full maintenance plans, parts backup and operator training behind every machine.
- Light, unstable or awkward loads
- Wrapping double-stacked loads individually
- High-throughput lines that need hands-free wrapping
- Banding, single or multiple bands
- Operations tight on floor space
- Fully automated film clamp, weld & cut
- Fully automated in-feed, process & out-feed roller conveyors
- 500mm NO-THREAD® powered pre-stretch carriage with tilting film mandrel for fast film loading
- Proven clamp, cut and wipe-on film treatment system
- Timed heat-wire cut, cold to the touch within 5 seconds
- Horizontal & vertical ring guiding on maintenance-free polyurethane wheels
- Allen Bradley touchscreen with four programmable wrap cycles & alarm diagnostics
- Photocell for automatic load height detection
- Counterweight system for smooth, vibration-free operation
- Soft start & stop rotary arm, with emergency-stop sensor for arm-path obstruction
- NEMA 4/12 control panel with dust-tight, waterproof, UL508A, finger-safe components
- 100% structural steel construction, made in Canada
- Non-proprietary, easily available parts
- 3-year unlimited-cycle warranty, 10-year frame, lifetime pre-stretch rollers
- 3-phase power
- Full maintenance plans, parts backup & operator training
| Ring Speed | 0 to 25 rpm |
| Maximum Load Size | 1220mmL x 1020mmW x 2035mmH |
| Load Weight | 2200 kg |
| Wrap Height | 2000mm |
| Production Rate | 75 loads Per hour |
| Power Supply | 3 Phase |
| Custom option | 760mm NO-THREAD® pre-stretch carriage (upgrade from standard 500mm) |
